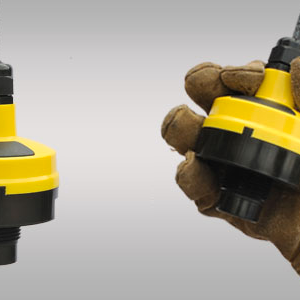

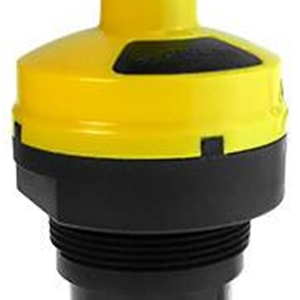

EchoPod^® DL24 Multi-Function Ultrasonic Liquid Level Transmitter

DL24 Range: 9.8’ (3m)DL34 Range: 18’ (5m)

Accuracy: ± 0.2% of range

Resolution: 0.039” (1mm)

Dead band: 4” (10cm)

Beam width: 2” (5.08cm)

Configuration: WebCal? PC, Windows®, USB 2.0

Memory: Non-volatile

Supply voltage: 24 VDC (loop)

Consumption: 0.5W

Loop resist.: 400Ω max

Signal output: 4-20 mA, two-wire

Signal invert: 4-20 mA or 20-4mA

Signal fail-safe: 4 mA, 20 mA, 21 mA, 22 mA or hold last

Contact type: (4) SPST relays

Contact rating: 60 VA, 1A maximum

Contact fail-safe: Power loss: Hold last, Echo loss: Open, close or hold last

Hysteresis: Selectable

Process temp.: F: 20° to 140°, C: -7° to 60°

Temp. comp.: Automatic

Ambient temp.: F: -31° to 140°, C: -35° to 60°

Pressure: MWP = 30 PSI (2 bar)

Enclosure rating: Type 6P, encapsulated, corrosion resistant & submersible

Encl. material: Polycarbonate

Trans. material: PVDF

Cable jacket mat: Polyurethane

Cable type: 9-conductor, shielded

Cable length: 48” (1.2m)

Process mount: 1” NPT (1” G)

Mount gasket: Viton®

Classification: General purpose

Compliance: CE, RoHS

Approvals: cFMus
